    Series Folder

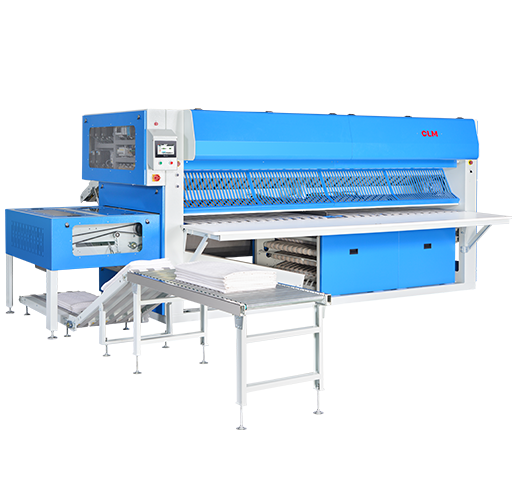

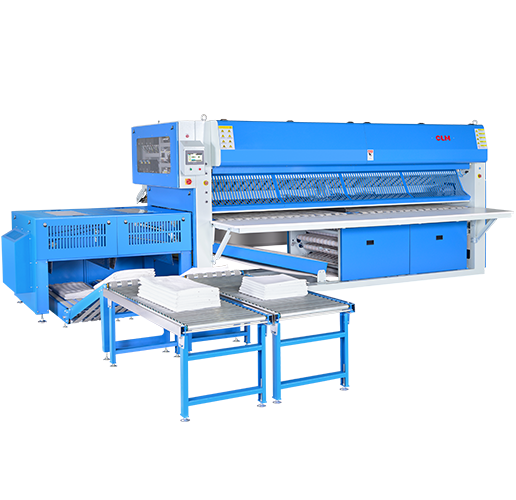

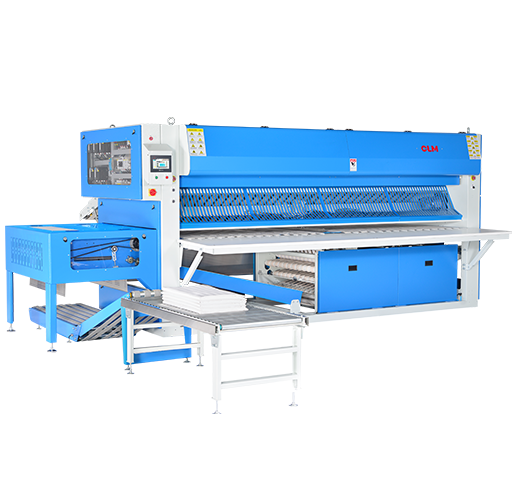

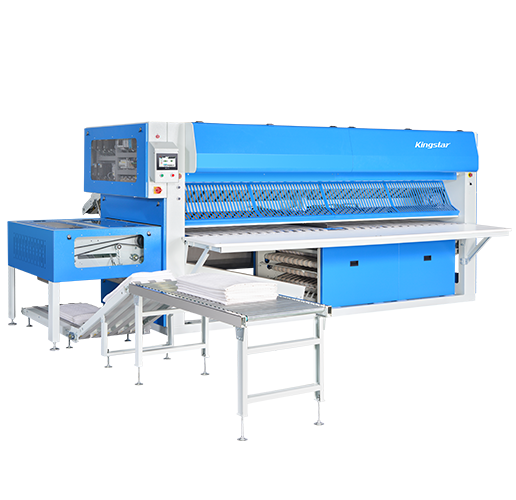

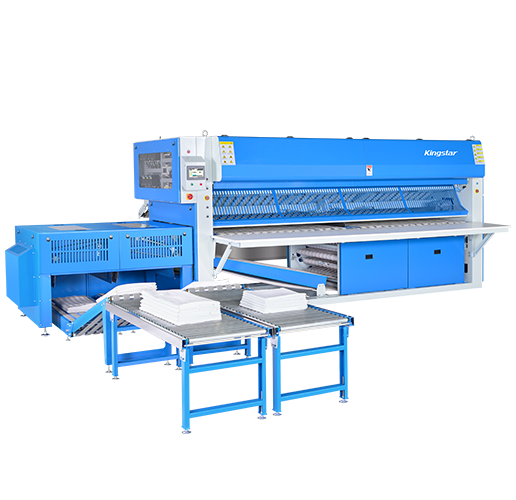

    Product overview


    The maximum folding speed can reach 60 m/min, for bed sheets max folding quantity  is 1200 sheets. CLM rapid folder  with CLM spreading feeder  and high-speed ironing lines can realize program communication linkage function


    Application industry


    Hotel Laundry
    Hospital Laundry

                      Product Video



























































    Technical Characteristics






    • Patent
      The first 5 nationl patents in China,-The first 5 nationl patents in China
    • Characteristics
      High Speed -maximum can reach 60 meters/minute; smooth running -low error rate, the probability of jamed linen is extremely low, even if it is blocked, the blocked sheets can be taken out within 2 minutes; good stability -the whole machine rigid, the accuracy of the transmission component is very high, all parts are used high quality imported parts
    • PLC
      The precise folding requires precise control. The CLM folder uses the Mitsubishi PLC control system,  7 -inch touch screen, and stored more than 20 folding programs and 100 customer information. Equipped with Internet functions such as remote fault diagnosis, failure exclusion, and program upgrade
    • Software Communication
      CLM Folder can communicate with feeder and ironer to realize software and program communication
    • Stacker
      The stacking system of the CLM high speed folder is a standard configuration. With the stacker, the operator does not need to frequently bend down to get the sheets and it prevent fatigue and improve working efficiency. The stacker conveyor adopts the powerless roller design.Even the operators left short time,the sheets will not jamed
    • Longfold Function
      CLM high speed folder has 2 longfold and 3 crossfold, the maximum folding size is 3300mm. Longfold is finished by air blowing, the air blowing time can be set based on different material and thickness linen to ensure the perfect folding quality
    • Crossfold
      CLM high speed folder has 3 crossfold,crossfold maximum folding size is 3600mm,even large size sheets can be folded well.3 crossfold all finished by folding knife to ensure the flatness and quality
    • Air blowing Stripping
      Each longfold section has the air blowing stripping device, which not only can prevent excessive static electricity, causing folding failure rate rise up, but also prevents the sheets rolling into the axis to cause folding failur
    • Air Cylinder Design
      The third crossfold section set two air cylinders on both sides of the axis, if any sheet blocked here, the two axis will automatic separated,operator can easily take out the blocked sheets
    • Open Structure Design
      The 4th and 5th folds are open structure design, conveniently to see and deal with any problem.
    • Frame Structure
      The frame structure of the CLM high speed folder is welded as a whole, and each long axis is precisely processed
    • Efficient
      Maximum Folding Speed can reach 60m/min, maximum capacity can reach 1200pcs bed sheets
    • Quality Ensurance
      All electrical components,pneumatic components,bearing,motor,etc all use Japanese, European famous brands





















    High Speed
    CLM洗衣籠密封性能性好，有效保證不漏水、運行噪音低
    Flat Ironing
    裝料口設置在地面70CM高的距離，實現輕松裝料，人性化設計。
    Running Smoothly
    所有電器、氣動元件均采用德國、日本品牌。
    Energy Efficiency
    洗衣籠內筒采用4mm厚度不銹鋼，比歐洲其他品牌材料更厚更堅固。
















    Technical Parameter


             Product manual
